Sunbonder
Specifications

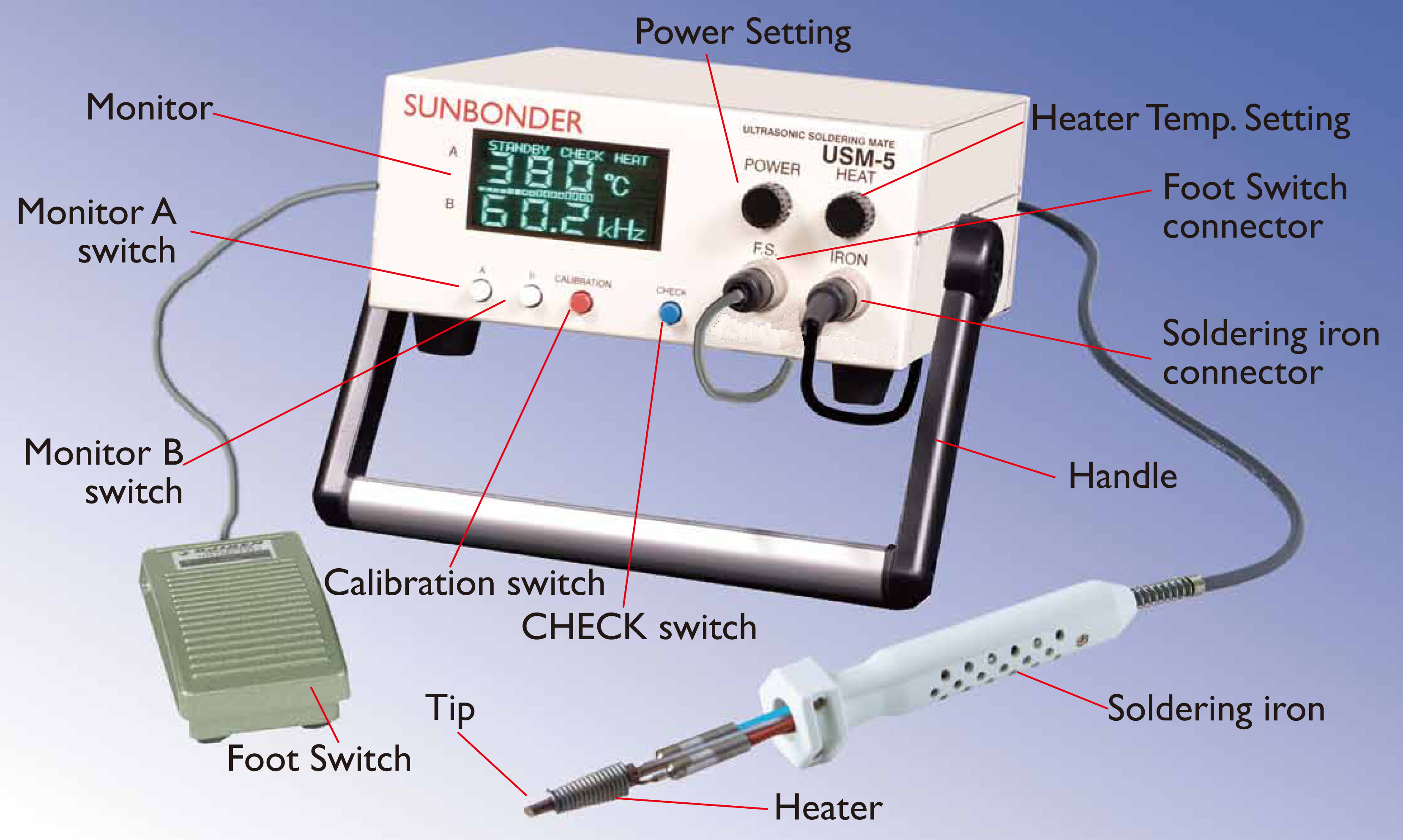

1. Sunbonder-V complete
system including soldering iron and foot switch
- Input Voltage:

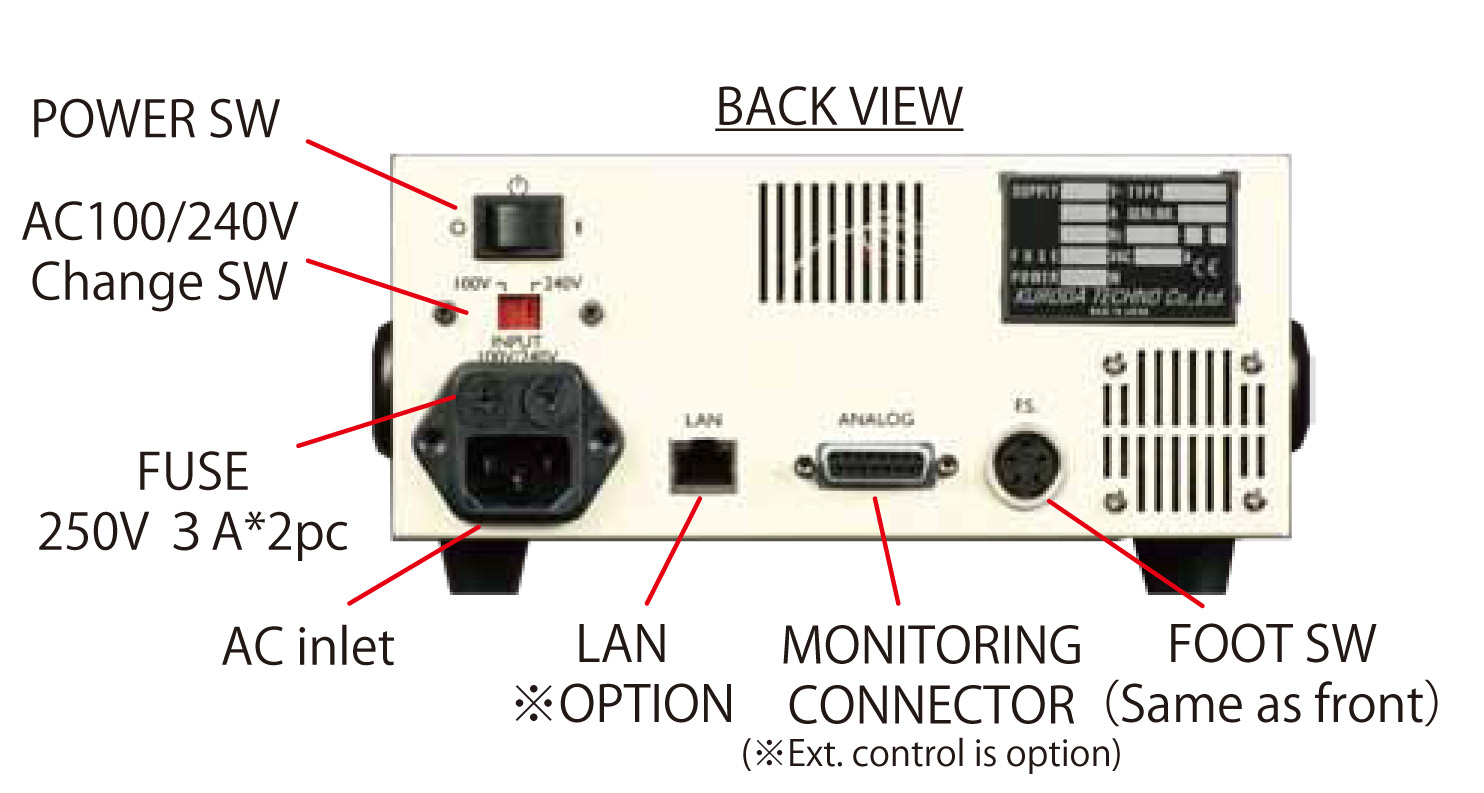

- Input Voltage: 100V-240V selectable in the
back of the unit.
- Dimensions and Weight:
- 210(W)×190(H)×220(D)mm about 5Kg
- Oscillator Frequency:
- 60 KHZ
- Oscillator Output Power:
- 15W rated 10W effective max.
- Heater Max. Output:
- 65W
- Monitor Displays:
- Heater Temp. and Oscillator frequency
- Soldering Tip sizes:
- 1.0 - 4.0mm by 0.5mm increment
-
For
complete brochure, please download Sunbonder-V.PDF
(550KB)

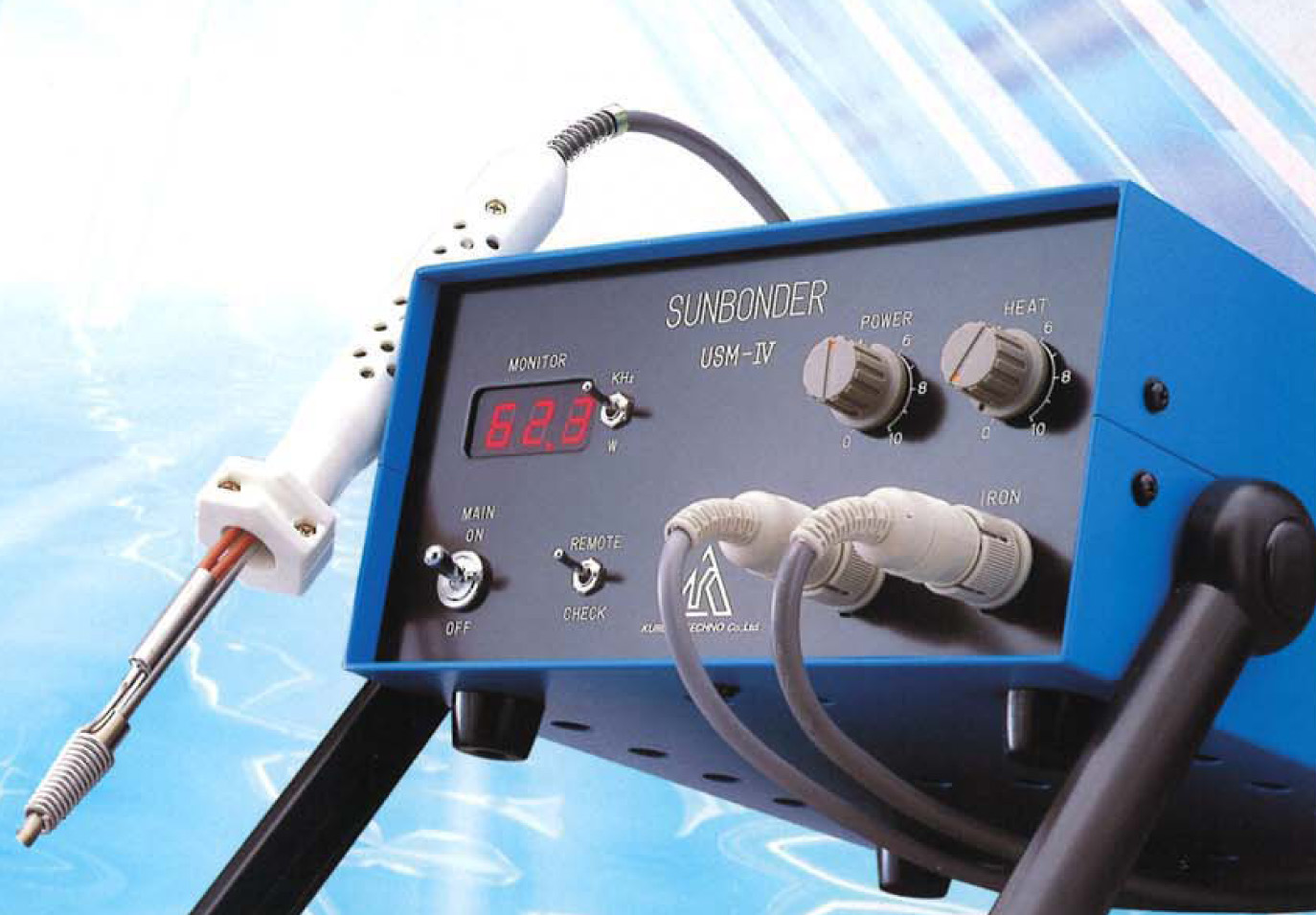

2.
Sunbonder-IV complete
system ( to be phased out soon)
-
- Input Voltage:
- Input Voltage: 100V-240V selectable in the
back of the unit.
- Dimensions and Weight:
- 265(W)×110(H)×260(D)mm about 8Kg
- Oscillator Frequency:
- 60 KHZ
- Oscillator Output Power:
- 10W Max
For
complete brochure, please download Sunbonder-IV.PDF
(603KB)

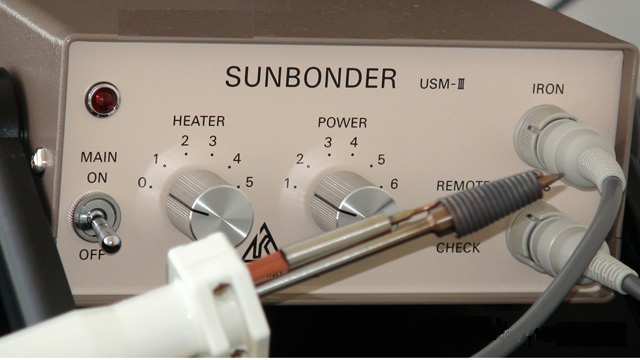

3.
Sunbonder-III
complete
system including soldering iron and foot switch (100V) system
- Input Voltage:
- AC100V ±5% 50/60Hz 70VA（MAX）
- Dimensions and Weight:
- 180(W)×80(H)×215(D)mm about 4 Kg
- Ultrasonic Oscillator Frequency：
- Phase Locked Loop: 59.5KHz±1KHz
- Ultrasonic Oscillator Output Setting：
- Manual 6 steps: 0～7W
- Soldering Tip Temparature Control：
- Manual 6 steps 50W max
- Soldering Iron Size:
- φ32（max）×318mm
- Soldering Iron Tip Size:
- 1.0-3.5 mm Max
-
For
complete brochure, please download Sunbonder-III.PDF
(1.45MB)
4. Special Sunbonder SO6 with
10mm soldering tip, complete system including soldering iron and foot
switch
- Input Voltage:
- AC100V ±5% 50/60Hz 300VA（MAX）
- Dimensions and Weight:
- 180(W)×80(H)×215(D)mm about 3.5Kg
- Ultrasonic Oscillator Frequency：
- Phase Locked Loop: 40KHz±5KHz
- Ultrasonic Oscillator Output Setting：
- Manual 6 steps: 0～7W
- Soldering Tip Temparature Control：
- SCR Control: 150W max Stepless
- Soldering Iron Size:
- φ32（max）×318mm
- Soldering Tip Size:
- 10mm Max
5. Sunbonder-28 with
10mm x 28mm soldering tip, complete system including soldering iron and foot
switch
- nput Voltage:
- AC100V ±5% 50/60Hz 500VA（MAX）
- Dimensions and Weight:
- 230(W)×105(H)×215(D)mm about 3.5Kg
- Ultrasonic Oscillator Frequency：
- Phase Locked Loop: 28KHz±5KHz
- Ultrasonic Oscillator Output Setting：
- Manual 6 steps:
- Soldering Tip Temparature Control：
- SCR Control: 200W max Stepless
- Soldering Iron Size:
- φ56（max）×300mm
- Soldering Tip Size:
- 10 x 28mm Max
-
-
